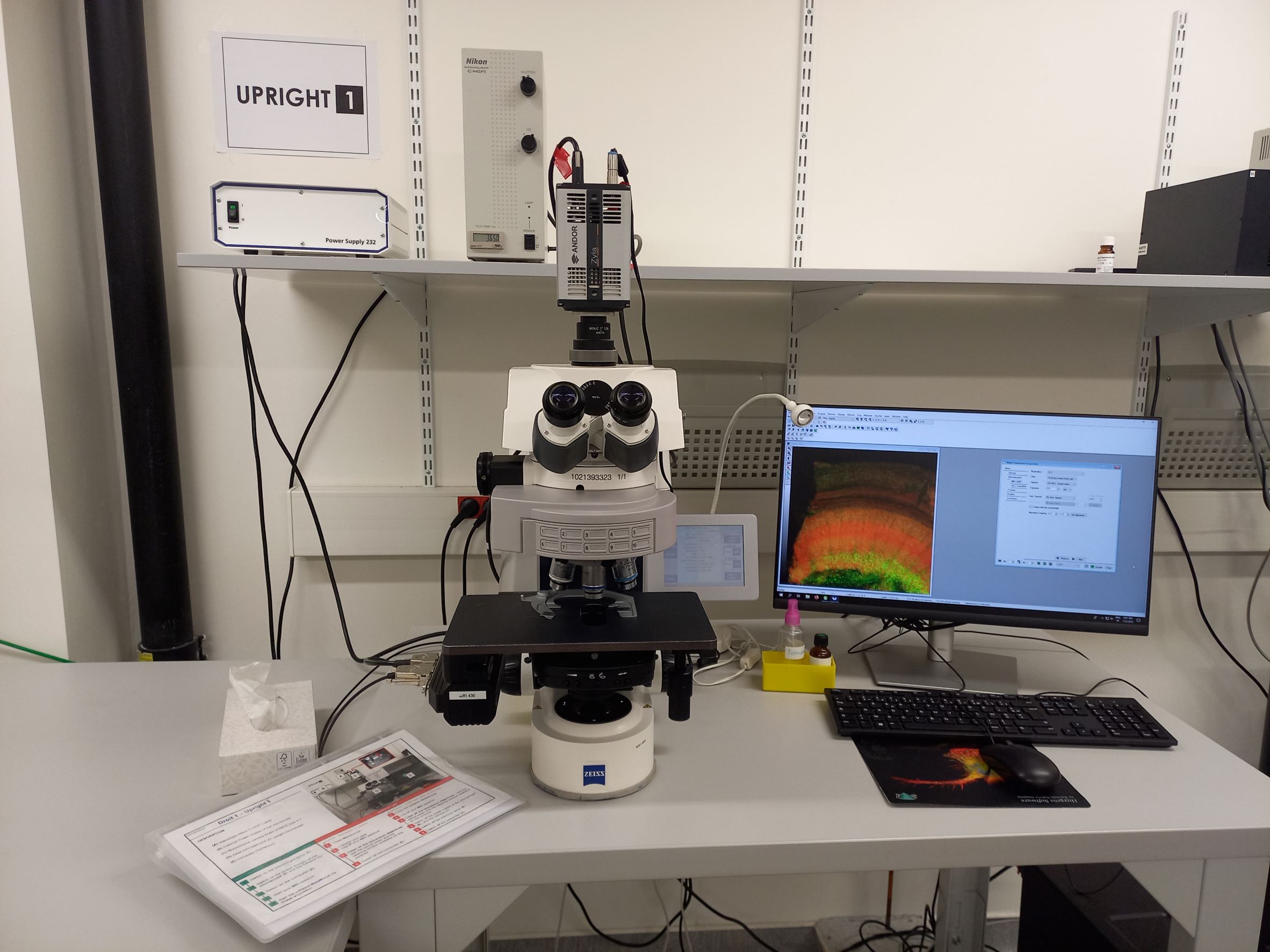

Droit 1 Zeiss Axioimager Z1


Tariff (public) : 15.66 €/hour
Tariff (private) : -- €/hour
Associated technologies:
  • 2D imaging
  • 3D imaging

  • Brief description:
    Epifluorescent widefield microscope dedicated to 2D and 3D acquisition conjugated to deconvolution for fixed samples between slide and coverslip.
    Fluorescence -Brightfield and Darkfield
    DIC
    Multi-dimensional acquisition

    Controlled by Metamorph software
    Objectives:
    10X EC Plan Neofluar 0.3 NA
    20X Plan Apochromat 0.8 NA
    40 X EC Plan Neofluar 1.3 NA oil
    63X Plan Apochromat 1.4 NA oil
    100X Plan Apochromat 1.4 NA oil
    Excitation Source:
    Mercury Lamp 103W
    autocentrable lamp house

    Filter cubes:
    Hoechst
    CFP
    GFP
    YFP
    Cy3
    Texas Red
    Cy5
    Detector:
    scMOS ZYLA 4.2 MP camera
    (2048*2048 pixels, 6.5µm pixel size)
    Acquisition mode:
    automatisation mode: XYZ, multi-channels, scan slide
    custom-made protocol
